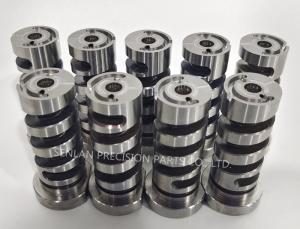

M340 Pipette Tips Mold Parts 0.005 Tolerance For Plastic Molds
The core pins are used for Medical mold, from common medical supplies to high-precision minimally invasive equipment, die casting mold parts, cosmetic parts, etc.
Description Of Mold Core Pin

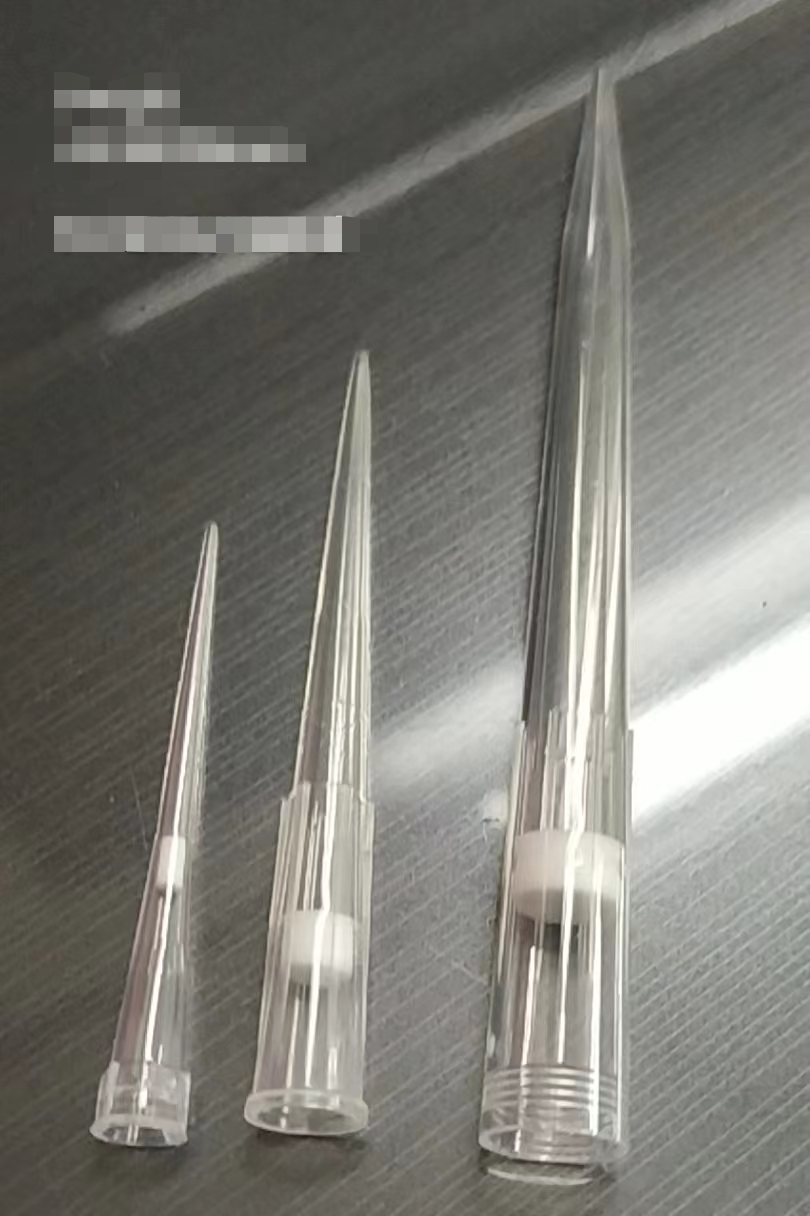

A Mold Core Pin is an extended or male portion of the mold which creates the internal surface used in plastic injection molding often in the medical industry. this particular Mold Core Pin is used for injection molding medical pipettes used in fluid sampling. A Mold Core pin is usually made of M2 steel, High‐Strength H13, or other tool steel. Mold Core Pin need a certain level of toughness, but they also need to withstand a certain amount of misalignment in the molding process without breaking. In addition, the successful use of Mold Core Pin depends largely on the grinding process and on this essential points:
1. Pinch grinding is needed in order to avoid deflection during the grinding cycle
2. Near‐perfect TIR
3. Avoid heat issues during grinding to prevent changing metal characteristics and to avoid warping the pins
Specification Of Mold Core Pin:
Mold Specifications:
| Description | Plastic injection mold for Laboratory Micro Pipette Tips |
| Part Material | all thermoplastics such as ABS, PC, PP, PE, PA, TPE, POM, PPS, PBT and other high engineering plastic, such as PEEK, PPS, PPO, PEI, PES etc |
| Cavity number | 1/2/4/8/16/32/48/64...(optional) |
| Runner | Hot runner or cold runner |
| Core & cavity material | M340, 1.2083 stainless steel |
| Mould Standard | MISUMI, DME,CUMSA,HASCO |
| Mould life | Long mold life |
| Available format | .stp/.pdf/.x-t/.step./.dwg/.dxf/.igs/.prt/.stl/.sldprt |
Purchase Core Pins Process Chart:
| Plastic Mold (Moulds) Components Production Process | Description |
| 1. 3d Design/Samples For Quotation | According to 3D drawing or samples for quotation |
| 2. Negotiations | Including the price of mold components for cores & cavities, weight of product, payment, lifetime, delivery, etc. |
| 3. Purchasing Order | After the customer confirming the mould design and quotation |
| 4. Making mold(moulds) components | Confirm drawing, start to do DFM, mold flows and mold detail agreed with the customer, start production |
| 5. Production schedule | Every week we will feedback to the customer a mold progress (picture) |
| 6. Sample Shoot | We provide the moulds Components test samples for confirmation (about 1-2piece), then, get your signature sample, mass production |
| 7. Package | Cartons box for parts, or as your requiretment |
| 8. Delivery | Deliver goods by air or by sea. Express |
FAQ:
Q1: How Long We Will Get The Goods?
A: Generally it is 2-5 days if the goods are in stock. or it is 16-23 days if the goods are not in stock, it is according to quantity and your customization need
Q2: Do You Have Any Office In My Country ?
A: We have no office in other countries now, but with 15 years development, we have been one of the leading manufacturer for plastic mold parts in dongguan city, which has exported the goods to nearly 35 countries, each components was tested through the strict quality control system before delivery, and we never get any complaint from clients yet
Q3: Could You Provide Us Report When We Need?
A: Yes, we can provide material report, dimensional report and heat treatment report, as well as the special report you require from the third party inspection company
Q4: Could You Accept D/A Payment?
A: At the moment, we accept TT, L/C At sight, Paypal
